FIBC Standard
4-Panel Square Bottom Bag
Four separate side panels stitched into a true cube — the most dimensionally stable FIBC construction, built to hold its shape when filled. Ideal for palletised loads and double stacking. Built in-house for consistent denier and tenacity.
- Description & Features
- Benefits
- Technical Specifications
Description & Features
Where the U+2 trades a little squareness for economy, the 4-Panel is built for shape. Four flat side panels give a bag that stands as a true cube when filled — no barrelling, no lean. That makes it the natural choice wherever bags are palletised, double-stacked or stored in tight warehouse footprints, and wherever a clean, uniform load matters.
Built in-house from our own tape and yarn, every 4-Panel bag carries consistent GSM and tenacity across all four walls, with double-stitched seams and a full range of loop, liner and discharge options.
- Best-in-class dimensional stability
- Cleaner stacking and palletising
- Even load distribution across four walls
- Better container and warehouse fill
- Food-grade and lined options available

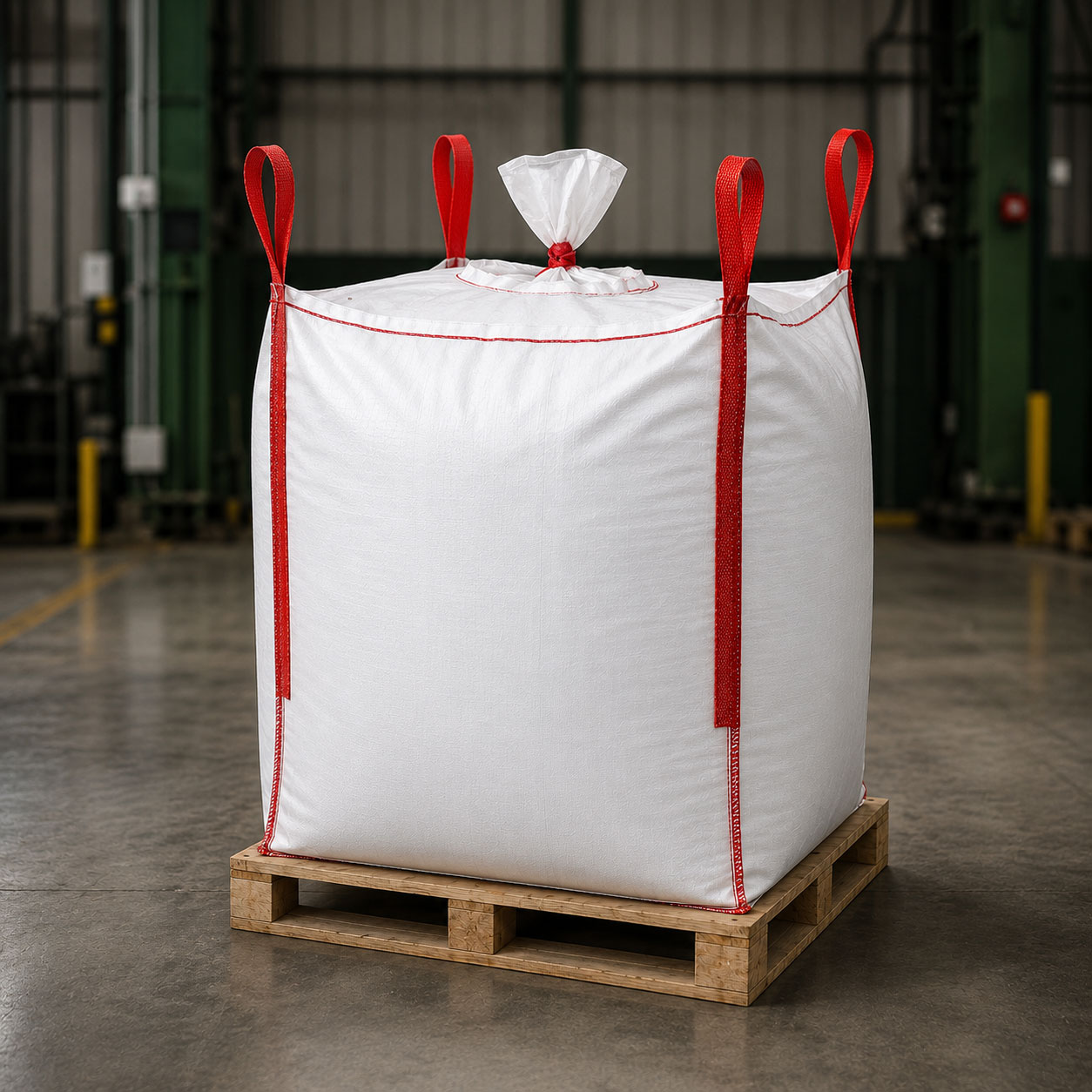

Construction
How the 4-Panel is built.
Four flat woven panels are stitched together to form the four walls, with a separate base. Because each wall is a flat panel, the bag holds a square, upright shape when filled — it doesn't bulge or barrel the way a tubular bag can. That squareness is what makes it stack and palletise cleanly, using container and warehouse space to the full.
Every seam is double-stitched with high-tenacity thread, and hems are reinforced for repeated handling. Generate an enquiry for custom specifications →
Manufacturing process & quality control
Yarn Extrusion
Denier & tensile strength checkCircular Weaving
Fabric weight & weave density checkCutting & Stitching
Seam strength & stitch density checkLiner & Loop Fitting
Loop pull-test & liner seal checkFinal Inspection & Packing
SWL drop test & dispatch audit

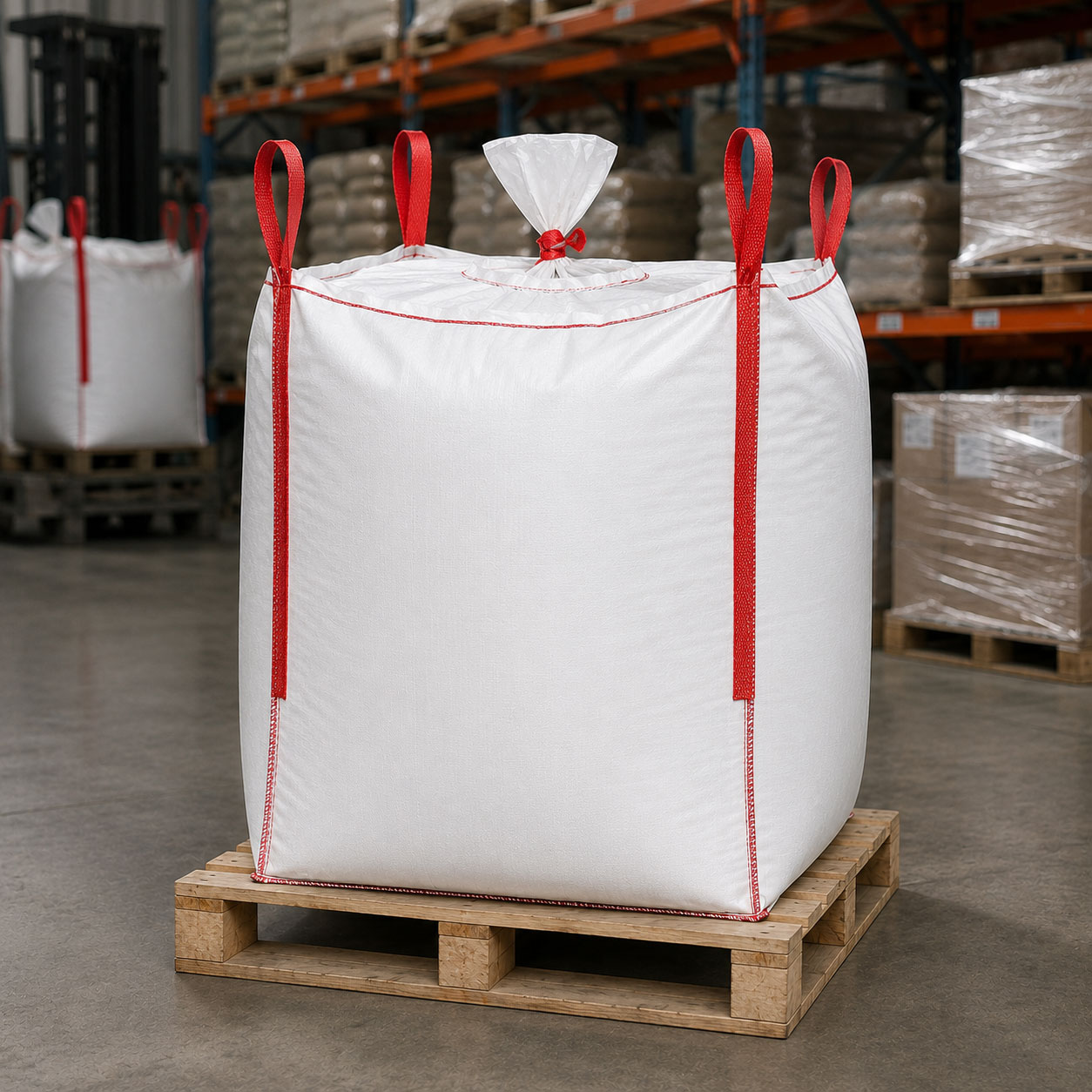

Customizations
The following is a list of further customizations you can avail for your 4-Panel Square Bottom Bag.
Loop Options
Corner Loops, Cross-Corner Loops, Stevedore Straps, Sleeve / Tunnel Lift, Single Loop, Double Loop
Opening / Filling Options
Open Top, Duffle / Skirt Top, Filling Spout, Conical Top
Bottom Discharge / Closure Options
Flat Bottom, Discharge Spout, Conical Bottom, Full Open Discharge, Diaper Bottom
Stitching Options
Single Stitch, Double Stitch, B-Lock Stitch, Sift-Proof Seams
Liner Options
PP Liner, PE Liner, Anti-Static Liner, Food-Grade Liner
Why Choose This Bag
Built to stack and stay square.
Dimensional Stability
Flat panels hold a true cube when filled, so bags stand square and stack safely.
Space Efficient
Squareness maximises fill in containers and on pallets, cutting freight cost per tonne.
Structurally Even
Load spreads evenly across four walls, reducing bulge and lean.
Stack Ready
Holds shape under double stacking, protecting bags below.
Where It's Used
Industries that rely on the 4-Panel.
Chemicals & Fertilizers
Square, stable bags palletise cleanly for warehoused chemical powders and granules.
Food & Pharma
Even shape and food-grade options suit hygienic, stacked ingredient storage.
Minerals & Mining
Holds shape under dense, heavy mineral loads.
Agriculture & Seeds
Stable stacking for warehoused grain and seed.
FAQs of Customers
What is your minimum order quantity?
The normal lead time is 4–5 weeks ex-factory from the date of an order complete in all respects. Minimum order quantities vary by specification — contact us for a tailored quote.
What is your lead time for samples?
Samples are typically dispatched within 7–10 working days of specification confirmation.
Can we print onto our bags?
Yes — flexographic printing up to 8 colours is available on the 4-Panel construction.
Are these bags UV protected?
UV stabilisation is available as standard or enhanced treatment depending on your storage and transit duration requirements.
